Liquid Cooling Quick Connector / UQD Seals

Material Options: NBR, EPDM, Silicone, FKM, FFKM

Temperature Range: -60°C to +320°C (material dependent)

Hardness: 20–90 Shore A

Standards Available: AS568, ISO 3601, JIS B 2401, customized sizes

Certifications:


Colors:

Packaging: Bulk, individual bags, or OEM branded

INQUIRYDOWNLOAD
Introduction

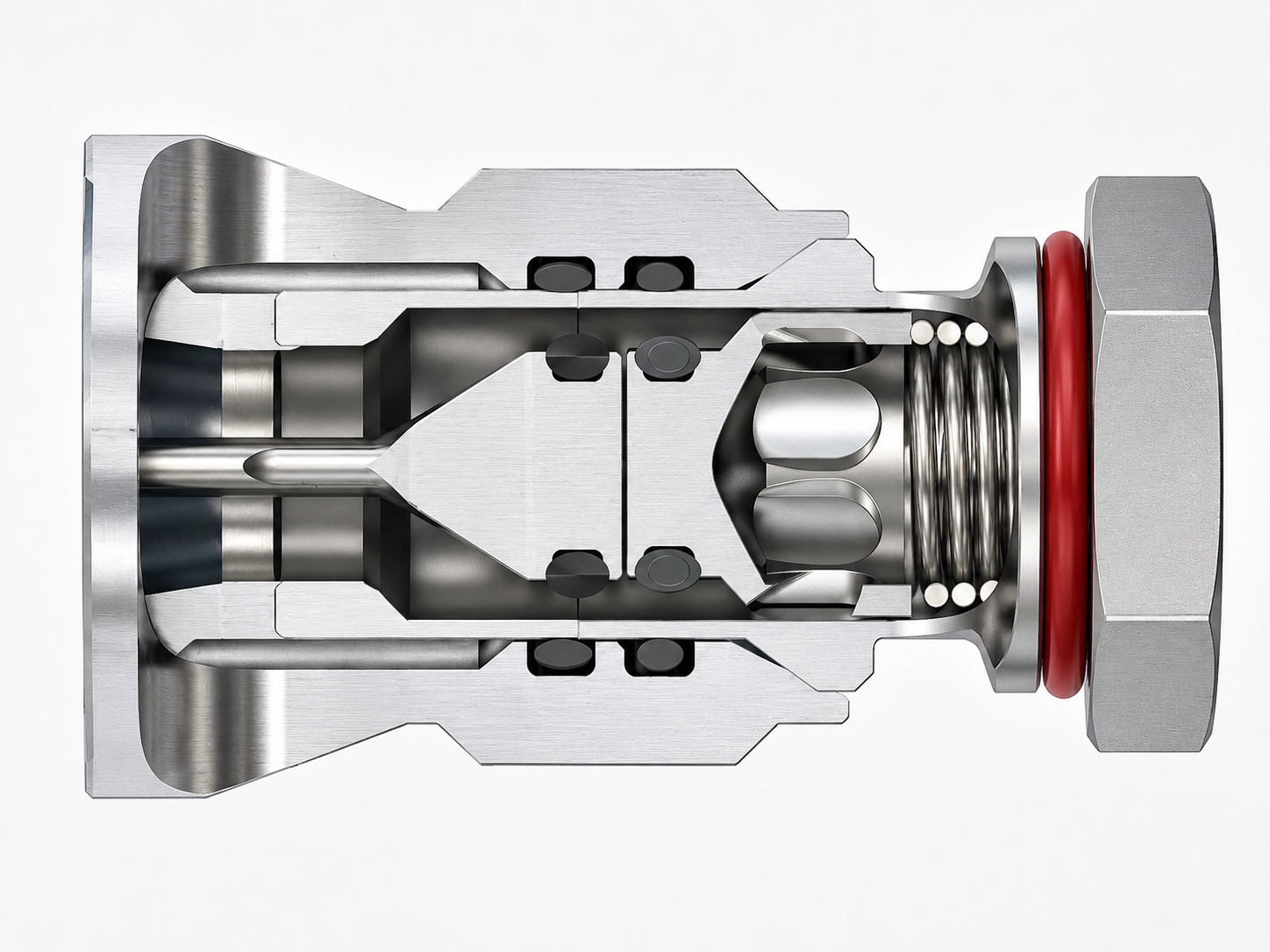

Liquid cooling quick connectors and Universal Quick Disconnect (UQD) couplings provide serviceable fluid connections in data center cooling loops. Their internal O-rings must maintain reliable sealing during pressure changes, temperature cycling and repeated connection and disconnection while remaining compatible with water- and glycol-based coolants.

Hao Seal supplies custom EPDM and FKM O-rings for UQD and other liquid cooling quick connector designs. Material, hardness and dimensions are selected according to the coolant, operating temperature, pressure, groove structure and required connection cycles to help reduce leakage, swelling, compression set and premature seal failure.


Product Profiles

Aflas or Kalrez(FFKM)

Acrylate Rubber(ACM)

Ethylene-propylene(EPR, EPDM)

Fluorocarbon(FKM/FPM)

Fluorosilicone(FVMQ)

Hydrogenated Nitrile(HNBR)

Neoprene Rubber(CR)

Nitrile Rubber(Buna-N/NBR)

Polyurethane(PU)

Silicone Rubber(VMQ)

Styrene-butadiene Rubber(SBR)

Polytetrafluoroethylene(PTFE)

  • O-Ring

    O-Ring

  • O-Ring

    Square Ring

  • O-Ring

    X-Ring

  • O-Ring

    D-Ring

Applications

They provide static and dynamic sealing to prevent leakage and ensure long-life equipment reliability.

Advantages

2D

Technical Parameters
O-Ring Design Reference
O-Ring Size AS568A-W Cross-SectionL Gland DepthSqueezeE(a) Diametral ClearanceG-Groove WidthR Groove RadiusMax Eccen-tricity(b)
NominalActualActual%No Back-up Ring(G)One Back-up Ring(G1)Two Back-up Ring(G2)
